Henry Lawson Drive & Cumberland Highway Upgrade

Henry Lawson Drive

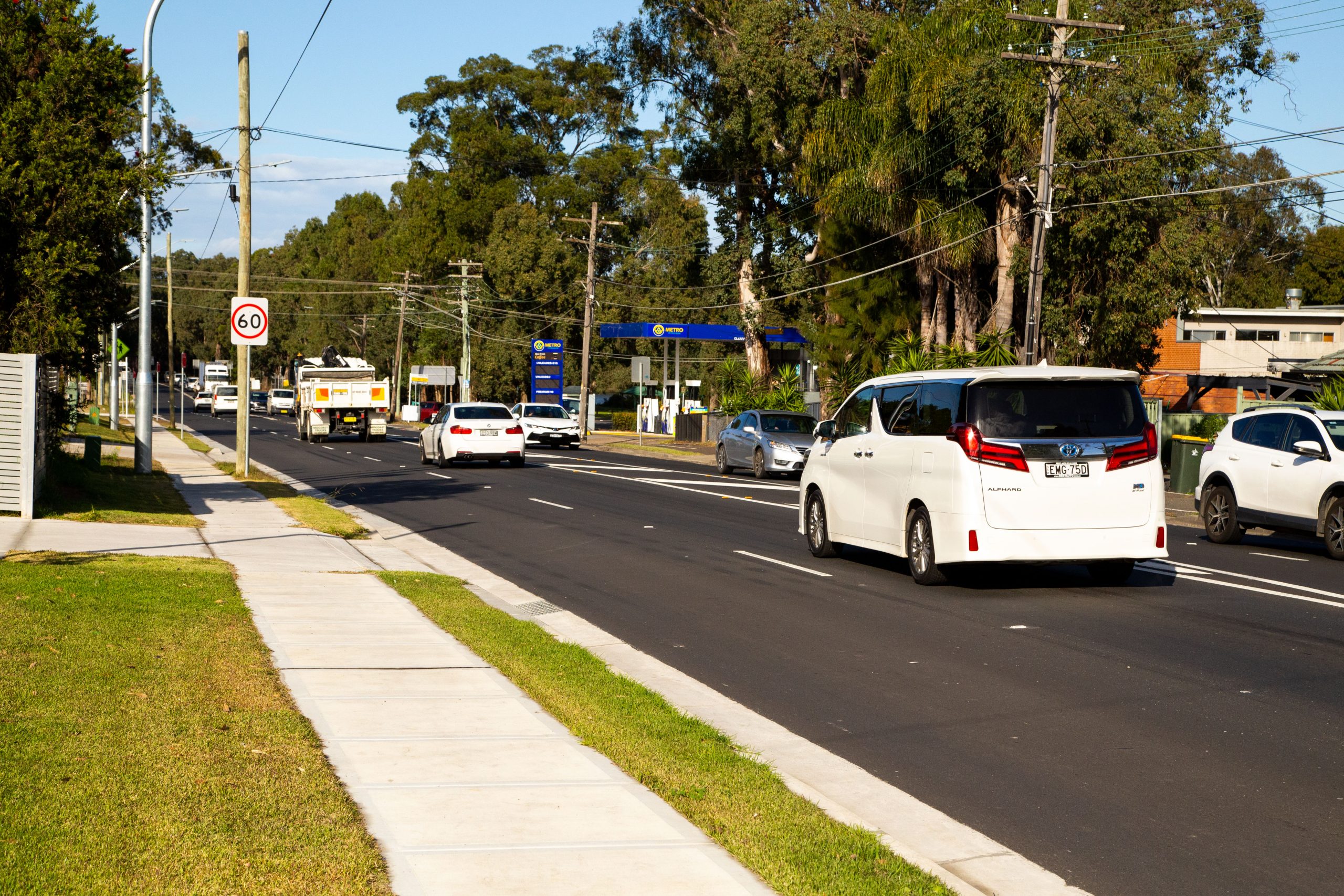

IMG_1756

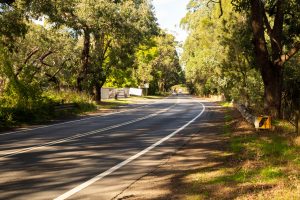

IMG_1855

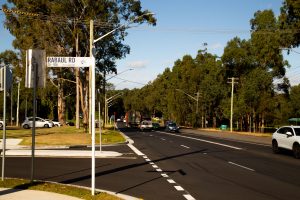

IMG_1781
IMG_1817

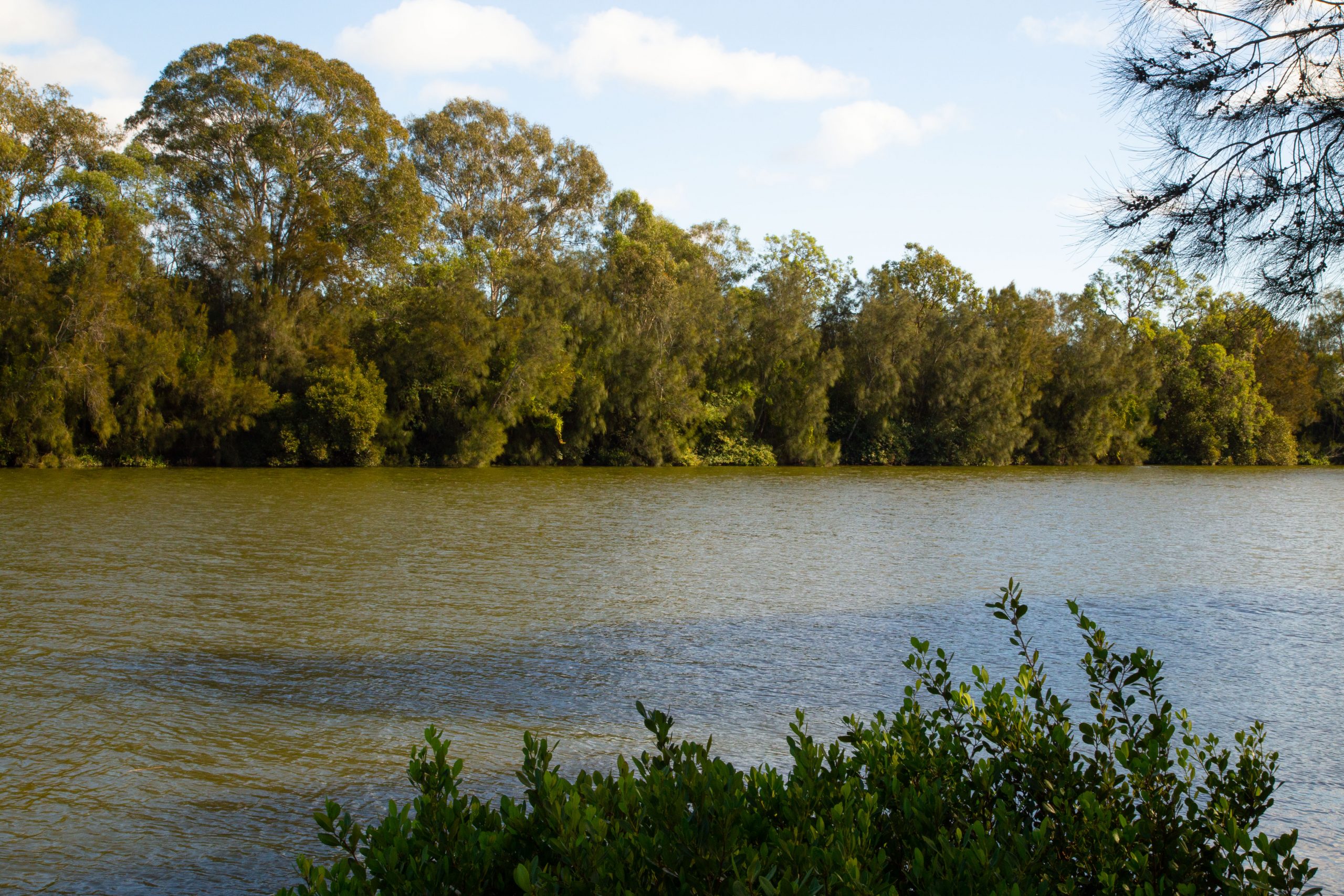

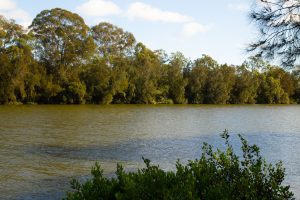

IMG_1820

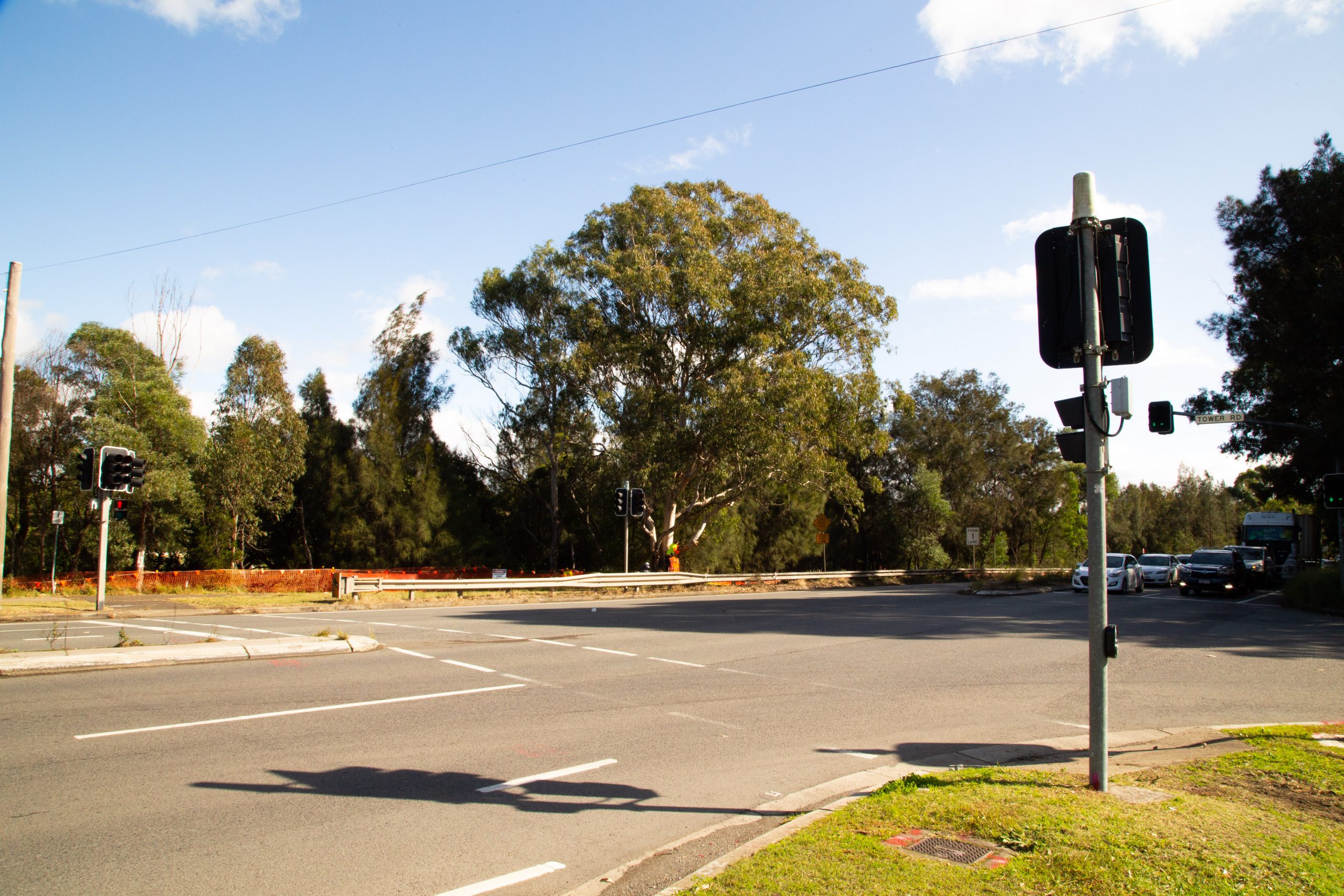

IMG_1900
IMG_1756 IMG_1855 IMG_1781 IMG_1817 IMG_1820 IMG_1900

Project Name:

Upgrades at Henry Lawson Drive, Georges Hall & Intersection Improvements on Cumberland Highway at The Horsley Drive, Smithfield

Client:

Transport for NSW

$ Value of Project:

9 million

Location of Project:

Georges Hall & Smithfield

Duration:

September 2021 – November 2022

Description of Project:

Transport for NSW undertook road improvements on Henry Lawson Drive (HLD) between Beale Street and south of Rabaul Road in Georges Hall. Road improvements additionally extended to the southbound left turn bay on Cumberland Highway into The Horsley Drive (eastbound). The project involved the replacement of the headwall on the Georges River to accommodate large stormwater drainage flows, modification of existing and construction of new stormwater drainage.

Scope of Works:

The key features of the works included:

  • Utility installation, installation, relocation and protection of public utility services
  • Removal and disposal of existing footpaths
  • Stormwater drainage and minor structures
  • Earthworks including clearing and grubbing, removal and disposal of topsoil and placing of general fill.
  • Construction of new pavement including unbound base and subbase layers and asphaltic concrete wearing.
  • Replacement and construction of new Plain Concrete Pavement (PCP) slabs to extend the length of the turning lane
  • Mill and re-sheet of existing pavements
  • Property adjustments and fence alterations
  • Ancillary works including construction of new kerbs and gutters, paving of shared paths
  • Road furniture and street lighting
  • Signposting
  • Landscaping and vegetation works
